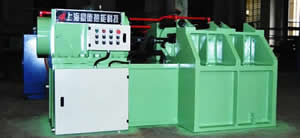

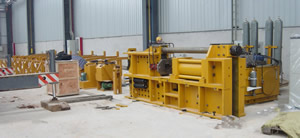

Swage and Upsetting Machine |
 |
 |
| F35-00 |
F49-00 |
Technical Specification
| Model |
F35-00 |
F49-00 |
| Tube diameter |
Ф38~Ф76mm |
Ф38~Ф76mm |
| Tube thickness |
4~12.7mm |
4~12.7mm |
| Tube material |
Carbon Steel / Alloy Steel / Stainless Steel |
Carbon Steel / Alloy Steel / Stainless Steel |
| Pressure |
1400KN |
1400KN |
| Travel |
415mm |
415mm |
| Force |
≥2850KN |
2400KN |
| Molding cylinder working pressure |
17.5MPa |
16MPa |
| Clamping cylinder working pressure |
9.5MPa |
16MPa |
| Function |
Swage,Upsetting |
Swage |
| necking length |
≤300mm |
≤300mm |
| Reducing |
12mm |
12mm |
| Max. thick upsetting |
6mm/30mm |
/ |
| Power |
52KW |
37KW |
|
|
|
| |
