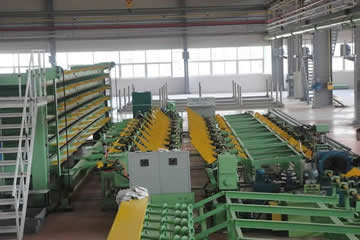

Automatic Tube Cutting and Preparation Line(ATCP) |
Application
ATCP is used for tube ends pretreatment before tube butt welding. The main functions includefixed-length cut, pipe end beveling, polishing both inside and outside of the tube, cleaning the inside of the pipe, transfer roller and storage rack and so on.
Technical Specifications
| Material Specification |
Tube Outer Diameter |
32-76 mm |
| Tube Thickness |
3-12.7 mm |
| Tube Length before Processing |
2000-12000 mm |
| Materials |
Carbon Steel / Low Alloy Steel / Stainless Steel |
| Tube Rack |
Length |
12000 mm |
| Length Measurement Device |
Range |
1000-12000 mm |
| Max. Conveying Speed |
500mm/s |
| Measurement Accuracy |
+/-1 mm |
| Work Beat of Entire Line |
≤1.5min |
Performance Characteristic
High degree of automation, centralized control, only 1-2 operatorsis needed.
High efficiency,all operation can complete in 1.5min.
Variety of alarm function, maintenance easily.
 |
 |

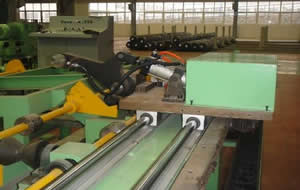

| CNC fixed-length device |

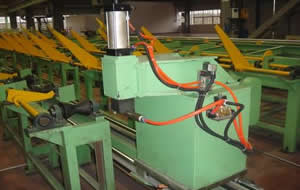

Blowing devicefor cleaning the inside of pipe |

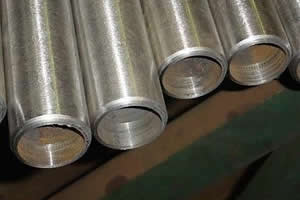

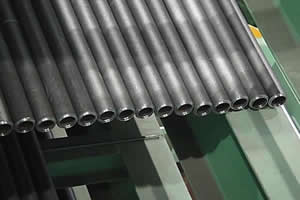

Prepared Tube end |
|
|
| |
