Small R Bent Tube Squeezing And Sizing Production Line |

Products
Application

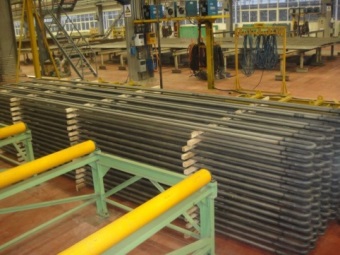

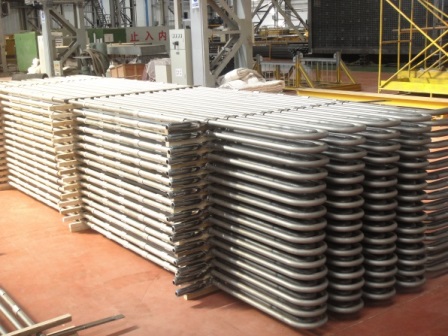

Small R bent tube squeezing and sizing production line is specialized for the fabrication of serpentine tubes for boiler industry. This machine is suitable for the production of small radius single elbow and the secondary bending of serpentine coils. The machine realizes small radius tube bending through the processes of heating, squeezing, and sizing.

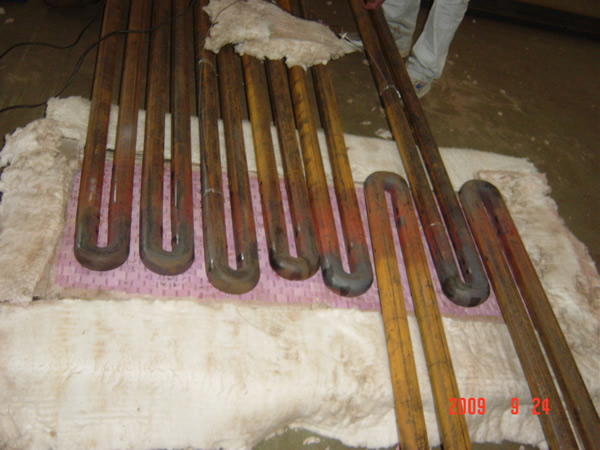

It is used to squeeze and calibrate small heated elbow on the same level. A qualified 180”ćelbow of Ф=76mm thickness=12.7mm R=1.5D can be squeeze to R=0.6D and achieve technical requirement.

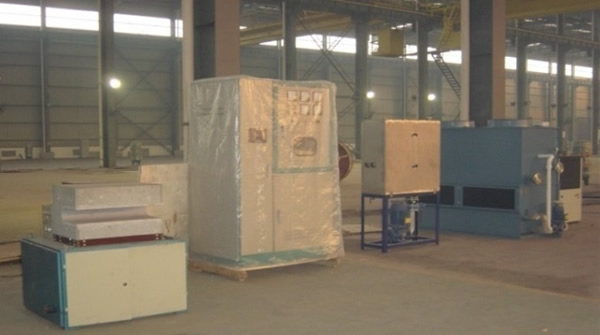

Equipment components

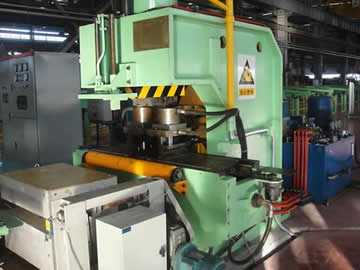

Small radius squeezing machine
Hydraulic system
Electric control system
Induction heating power supply and induction furnace
Oil temperature control device
Water-cooled devices
Technical Specifications
| Tube diameter |
Ф25.4~Ф76.1mm |
| Tube thickness |
4~12.7mm |
| Bending radius of the 180° elbow before sizing |
R/D=1.5D |
| Bending radius of the 180° elbow after sizing |
R/D≥0.6D |
| Sizing length |
300mm |
| Height |
1000mm |
| Calibration pressure |
P=130T |
| Squeeze pressure |
P=60T |
| Travel |
320mm(160mm) |
| Rises distance |
105mm |
| Hydraulic system pressure |
16MPa |
| Motor power |
20.5KW |

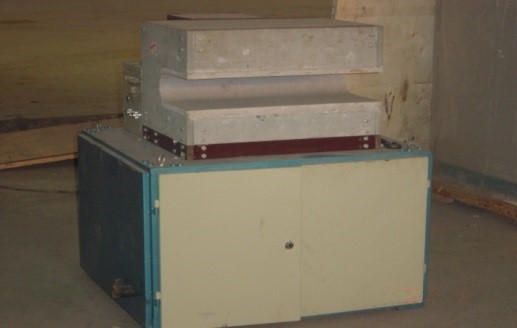

Induction Power Supply And Induction Furnace
|
|
|
| |
