Serpentine Bending Machine

Application

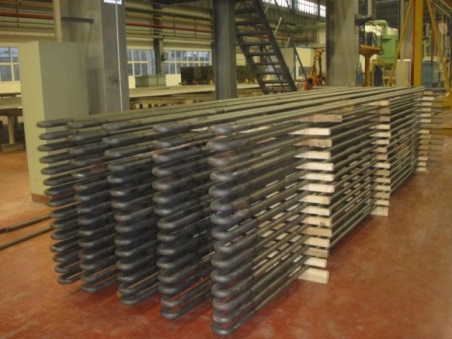

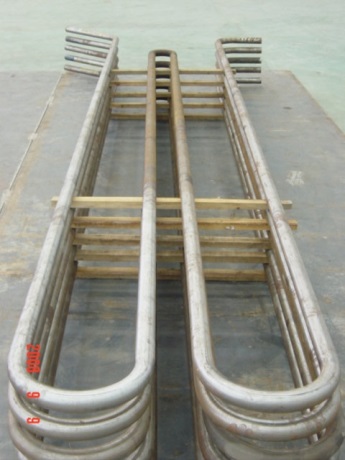

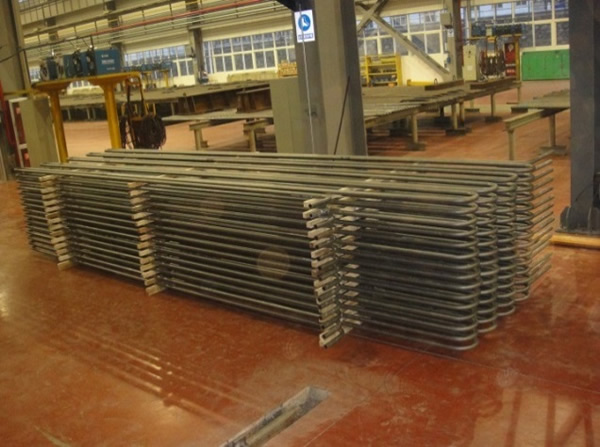

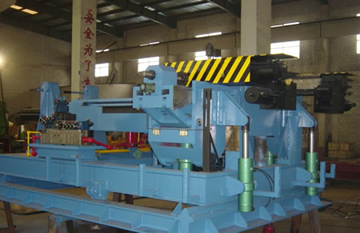

The boiler serpentine tube bendingmachine is used to manufacture serpentine product in boiler, metallurgy and chemical industries. It can bend tubes continuously with the fixed length tube feeding device.

Technical Specifications

Performance Characteristic

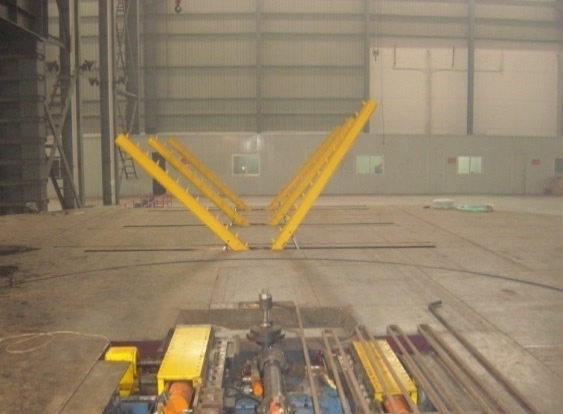

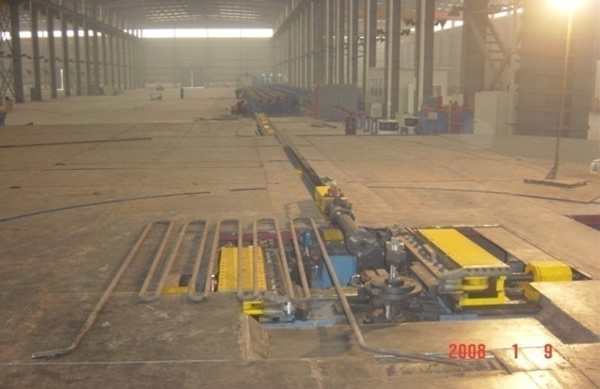

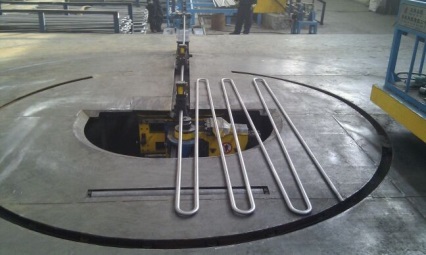

One machine with double-R tart mold parting to complete the double-side, double-R bending. It cancomplete single-side double-R bending also.
The main driver is with cylinder, sprocket chain drive, easy maintenance, lower maintenance costs.
The machine has small R top upsetting and big R push function. The top upsetting cylinder is in the chute rack. Clamping device can be axial adjustment so that to prevent upsetting when small diameter tube top lateral bending.
Crease plate device needs be installed when processing thin-wall serpentuator£¨t/D≤0.06£¬R/D≤1.5£© to prevent internal wrinkling.

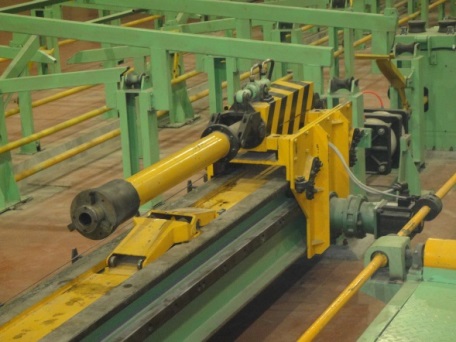

Rack and pinion CNC servo feed tube can guarantee precise size.To ensure the tube screen is not deformation after bending.
Bending tube program could store 50 sets
Bending process can be automated controlled by the program. Bending process can be remote controlled wirelessly.
The main components adopt famous brand products.

Single-Side Double-Rwith TP Force Tube Bending Line (with turning device)

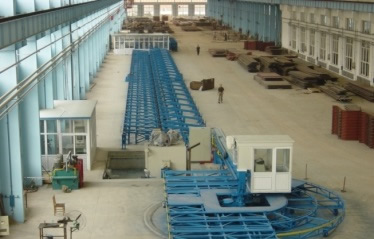

Double-Side Double-R Tube Bending Line	Double-Side Double-RHigh Speed Tube Bending Line

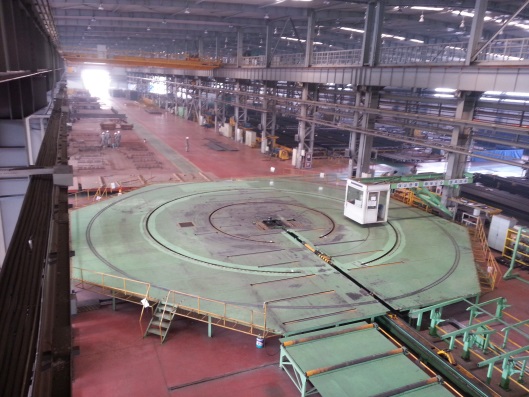

Double-Side Double-Rwith TP Force Tube Bending Line	Platform

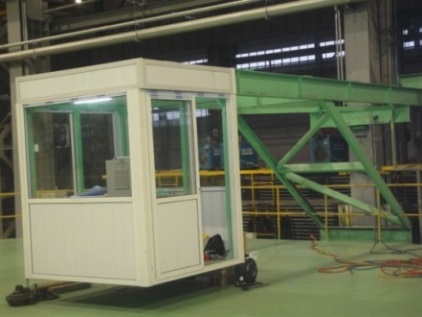

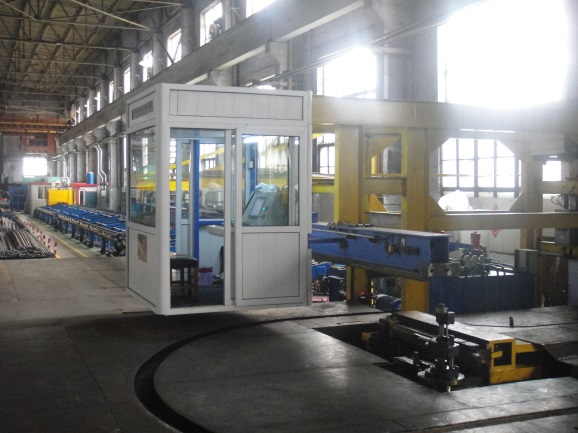

CNC Servo Feed Trolley	Console
