Membrane Panel MAG Welding Machine |
Application
This machine is used to manufacture the boiler membrane panel by weld calibrated fin-bar and polished tubes together. The machine is equipped with 8/12/20 torches and has two or four working positions. It can implement the downhead and overhead welding at the same time.
Performance Characteristic
◆Downhead and overhead welding positions are operated simultaneously on both sides of the panel with mixed gas shielded welding processes. Less spatter, good shape,high efficiency.
◆Meanwhile multi-torch welding, the work-piece heat symmetry, small deformation
◆Positioning using sheaves and flat boots structures can accurately control the pitch pipe and tube screen width.
Technical Specifications
| Model |
8x1600 |
12x1600 |
20x1600 |
4/8x3200~3600 |
| Tube Diameter |
32~76mm |
32~76mm |
32~76mm |
32~76mm |
| Tube Thickness |
3.5~9mm |
3.5~9mm |
3.5~9mm |
3.5~9mm |
| Fin Width |
12~100mm |
12~100mm |
12~100mm |
12~100mm |
| Fin Thickness |
4~9mm |
4~9mm |
4~9mm |
4~9mm |
| Max. Panel Width |
1600 |
1600 |
1200~1600 |
3200~3600 |
| Number Of Torches |
8 |
12 |
20 |
8 |
| Wire Diameter |
1.2 |
1.2 |
1.2 |
1.2 |
| Welding Speed |
500~700mm/min |
500~700mm/min |
500~700mm/min |
500~700mm/min |
| Type |
SingleUnit/Panel |
SingleUnit/Panel |
SingleUnit/Panel |
Panel |

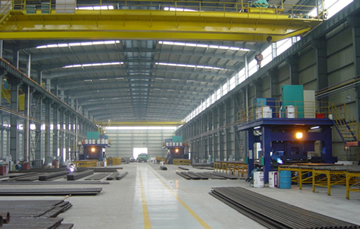

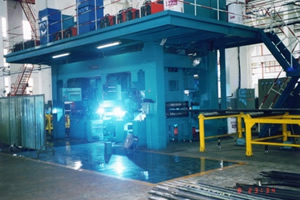

Membrane Panel MAG Welding Machine
