Membrane Panel Bending Machine |

Application

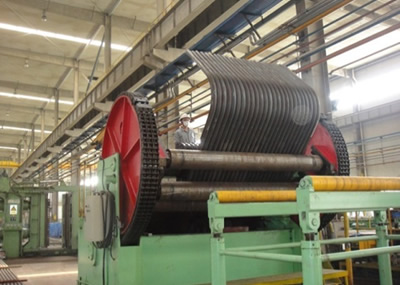

Membrane panel bending machine is a special equipment for the membrane panel bending in boiler industry. This machine has advantages such as same bending radius of curvature, improving the bending quality and efficiency, reducing the working pressure etc. Horizontal-type enables oblique bends.
Technical Specifications
| Type |
1600mmHorizontal |
2600mmHorizontal |
2400mmVertical |
| Drive supply |
Electric |
Electric |
Hydraulic |
| Max. panel width |
1600mm |
2600mm |
2400mm |
| Tube diameter |
Ф32~Ф76mm |
Ф32~Ф76mm |
Ф38~Ф76mm |
| Tube thickness |
4~9mm |
4~9mm |
4~9mm |
| Panel length |
24000mm |
24000mm |
24000mm |
| Bending radius |
R≥5D |
R≥5D |
200<R<500mm |
| Bending speed |
0.26rpm |
0.2rpm |
0.2rpm |
| Bending angle |
≤150 o |
≤150 o |
≤135 o |
|
|
|
| |
