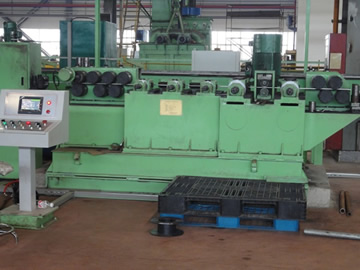

Fin-bar Calibration & Sizing Machine |
Technical Specifications
| Fin Width |
12~120mm |
| Fin Thickness |
4~10mm |
| Calibrating Speed |
1~5m/min(Stepless) |
| Calibrating Range |
≤1.5mm |
| Motor Power |
7.5KW |
Application
The machine is the key device of MAG Boiler Tube Panel Welding Line. It can straighten, calibrate width and cut fin to pre-set length.
Performance Characteristic
◆Gear transmission, big power.
◆Two-stage calibrates width with twoactivecalibrate rolls.
◆With five rollers levelingincluding twoactive rollers.
◆With five rollers straightening.
◆Digital setup, fixed-length cutting
◆Force feeding devices and auto-pneumatic turnover device.
|
|
|
| |
