Application
It is a specialized equipment for produce the membrane panel and serpentine tube bending. It has the characteristics of compact, flexible, easy to move, durable.This equipment is used for the processing of straight tube end internal/external groove and end surface.
Technical Specifications
| Model |
SHD-06 |
SHD-07 |
SHD-08 |
|
| Type |
Movable |
Insert |
Movable |
Fixed |
| Position |
Tube ends |
Tube ends on panel openings |
Tube ends |
Tube ends |
| Tube diameter |
Ф28.6~Ф76mm |
Ф32~Ф63mm |
Ф32~Ф76mm |
Ф32~Ф76mm |
| Speed |
97rpm |
97rpm |
120rpm |
78~150rpm |
| Manual feed volume |
0.11~0.2mm/circle |
| Max.travel |
40mm |
100mm |
| Motor |
1.5KW,1370rpm |
1.5KW,1400rpm |
3.0KW,1400rpm |
5.5KW,1400rpm |
| L*W*H |
819x266x66mm |
720x200x716mm |
720x200x716mm |
|
 |
 |

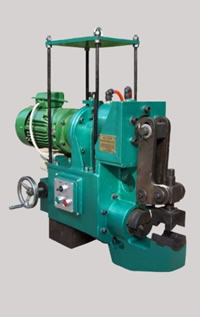

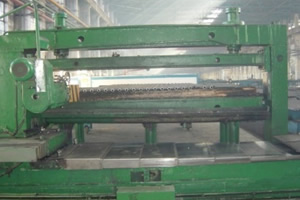

| Fixed Panel Tube Beveling Machine |

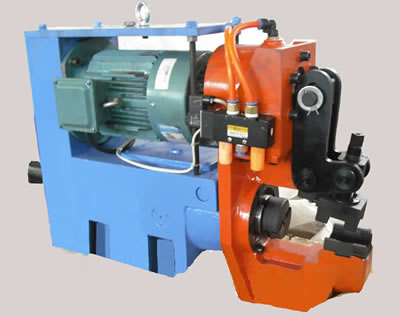

Insert Panel Tube Beveling Machine |
 |
 |

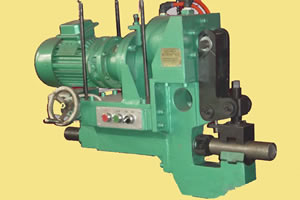

| Movable Panel Tube Beveling Machine |
Movable Panel Tube Beveling Machine |
|
|
|
| |
